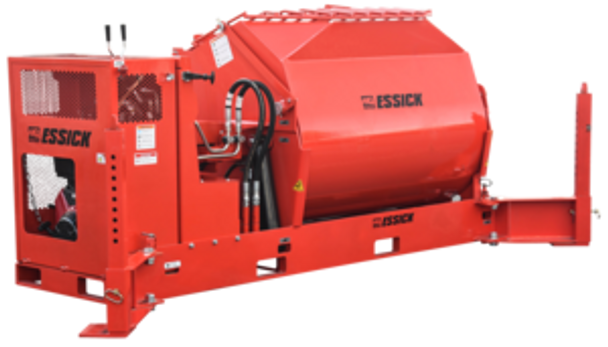

MQ Essick PRO20 Mortar Mixer 20 C.F. / 18 HP Vanguard Gas
An impressively large mixing capacity and powerful drive system sets the MQ Essick PRO20 apart from other mixers on the market.
The PRO20 features a reliable 18 HP engine and robust hydraulic drive to handle the toughest mixes. Nothing else comes close in performance, dependability or value
- Thick drum wrap — 1/4 in. wrap with 3/8 in. ends to resist abrasion.
- High torque hydraulic motor with integral relief.
- Reduced operator fatigue — overcenter dump and adjustable height (23 to 43 in) enables loading at waist level.
- Minimizes waste — built-in spill plate directs excess material back into the tub.
- Easy machine maneuverability — convenient access forklift pockets are approachable from any side of the mixer.
- Readily accessible drive and dump controls are located above the engine cowling.
- Fits in the bed of a pickup truck — 95.7 x 44.9 x 58.0 in (LxWxH) with legs retracted
| Capacity | 20 ft³ | 566 L |
| Bags | 6-7 | |
| Max. Aggregate Size | 1 in | 25.4 mm |
| Adjustable Drum Discharge Height | 23 to 43 in. | |
| Drive System | Hydraulic | |
| Dump Action | Hydraulic | |
| Shipping Dimensions | 95.7 x 44.9 x 58 in 2431 x 1140 x 1473 mm |
|
| Shipping Weight | 2004 lb | 909 kg |
| Engine Make/Model | Vanguard | |
| Start Method | Recoil/Electric | |
| Engine Power | 18 HP | kW |
| Fuel Type | Gasoline | |
