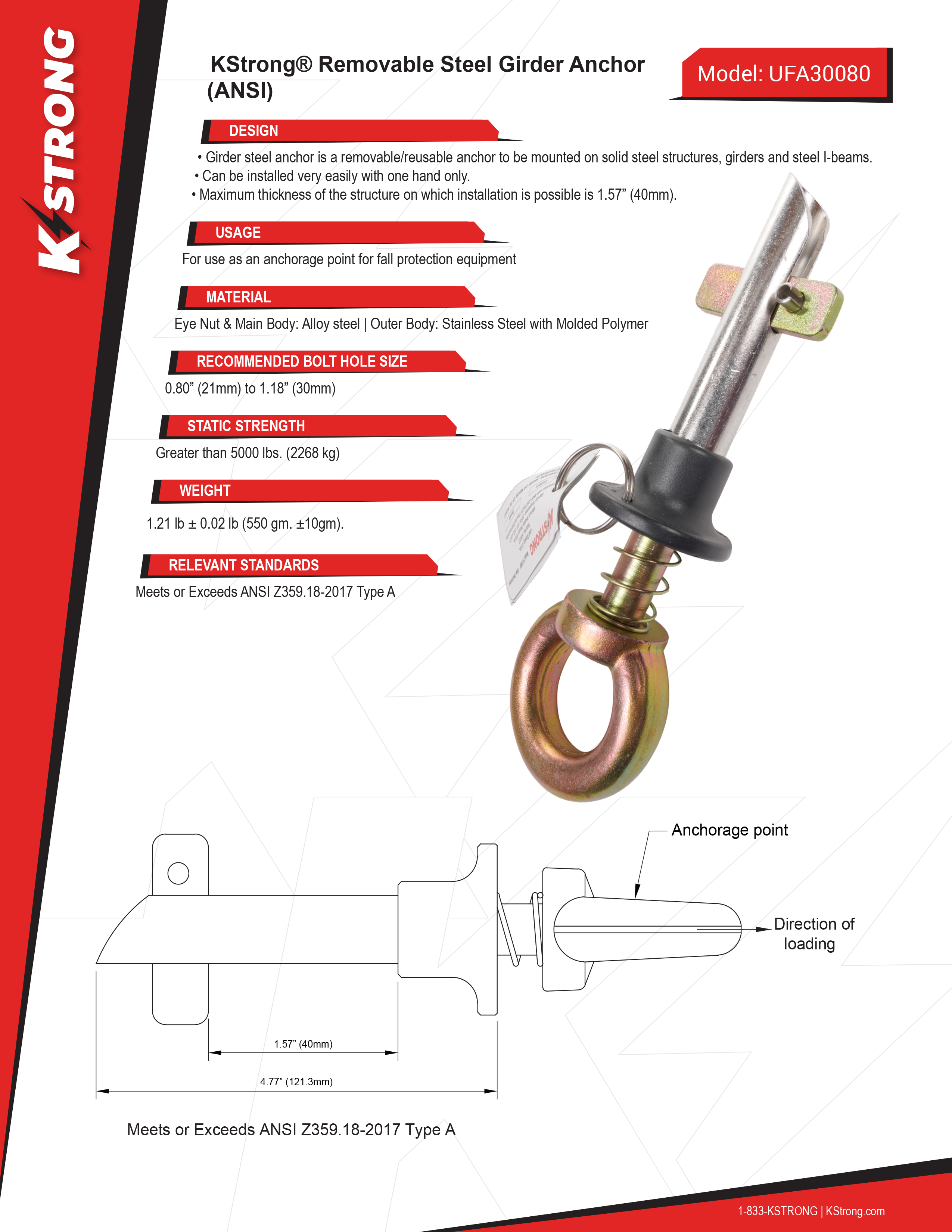

KStrong® UFA30080 Removable Steel Girder Anchor (ANSI)
Key Features
DESIGN:
- Girder steel anchor is removable/ reusable anchor to be mounted on solid steel structures, Girders and steel I-Beams.
- Can be installed very easily with one hand only.
- Maximum thickness of the structure on which installation is possible is 1.57” (40mm).
- USAGE: For use as an anchorage point for fall protection equipment.
- MATERIAL: Eye Nut & Main Body: Alloy steel | Outer Body: Stainless Steel with Molded Polymer
- RECOMMENDED BOLT HOLE SIZE: 0.80” (21mm) to 1.18” (30mm)
- STATIC STRENGTH: Greater than 5000 lbs (2268 kg)
- WEIGHT: 1.21 lb ± 0.02 lb (550 gm. ±10gm).
- RELEVANT STANDARDS: Meets or Exceeds ANSI Z359.18-2017 Type A
